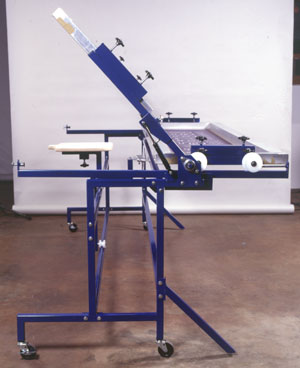

SIDE VIEW


Solid screen is on top. Outline screen rolls forward from the back of machine. Arms must be assembled on the inside of the bearing bolts. Arms must be level and parallel (spacers are provided if needed).

Leg extensions must be bolted on for stability.

Casters slip into the sockets on the bottom of both ends of the machine.

NOTE: Spray silicon lubricant if needed for easier rolling on arms or rails.

NOTE: Platen rollers may be removed for screen cleaning.
